Normal hand radiograph on X‑ray: 3 real cases
Real, openly licensed radiographs showing normal hand radiograph. Study what to look for, then open each case and read it yourself before revealing the answer.
What to look for
- Trace every cortex of the metacarpals and phalanges: no break, step or buckle.
- Each joint is congruent; on the PA the carpometacarpal joints show parallel joint lines (an 'M' pattern).
- Soft tissues show no swelling, gas or foreign body; nutrient canals can mimic fracture lines.
Quiz yourself on upper limb images
Cases

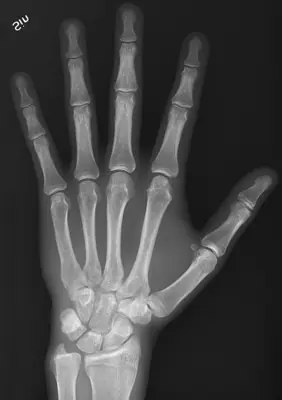

Case #63719647Upper limb · Beginner

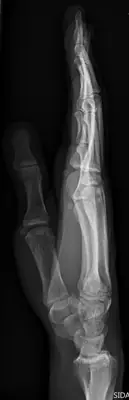

Case #63719650Upper limb · Beginner

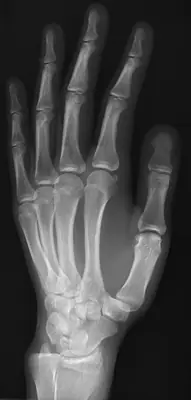

Case #63719654Upper limb · BeginnerOther upper limb diagnoses
